The most basic configuration of BioacousticAnnotator is a simple Player / Visualizer.

BioacousticAnnotator(data='detections.csv', audio='recording.flac').open()

Here we have used a CSV for the source data. We could similarly have provided a Parquet, or JSONL file path, an API-endpoit, a Database Query (using DuckDB), or have passed a dataframe directly. For audio we have passed a path to an audio file. For this example all the clips will come from the same file. You can also pass an audio_column so that each clip can be read from different audio file. The audio files can be local paths or be read over https://, s3://, and gs://.

For more advanced configurations it is suggested that to use a configurtion file.

Here’s a basic example:

simple-examples-3.yaml
description:
  title: Annotation Instructions
  text: "There are 4 types of annotations available:\n\n---\n\n- `time_select`: Single\
    \ draggable vertical line\n- `start\\_end\\_time_select`: Two draggable vertical\
    \ lines (constrained \u2014 can't cross)\n- `bounding\\_box`: Click+drag rectangle\
    \ with individually draggable edges\n- `multibox`: Draw multiple bounding boxes,\
    \ each with optional per-box form. Submits one row per box.\n- `fixed_duration`:\
    \ Click to place a fixed-length time region. Duration is set in config."
  open: false
display_columns:
- common_name
- scientific_name
- confidence
- rank
output:
  index_column: detection_id
  uri: s3://dse-soundhub/dev/annotations/simple-example-3.sync.csv
  sync_button: Sync To S3
info_card_title: '[[common_name]]'
info_card_text: 'scientific_name: [[scientific_name]]'
capture: true
capture_dir: spectrograms
audio:
  column: audio_url
data:
  index_column: id
default_buffer: 0.5
form_config: annotator_config/forms/simple-examples-3.yaml

The data file itself is not in the config: it is set in the project file (annotator_config/projects/simple-examples-3.yaml) or passed in the notebook, so the same config can be reused across datasets and users. Because this config has a form, it sets the input’s index column (data: {index_column: id}).


FORM CONFIG

We could have included the form config directly, however seperating the form config allows different projects to use the same forms. Forms themeselves can range to a simple select-dropdown to multipart dynamic forms. Even the most complex forms however are easy to configure.

Here we create a “species” select list populated with values from a csv:

form:
  - select:
      label: species
      column: common_name
      required: true
      items:
        path: data/species_counts.N-dse.csv
        value: common_name

Additional functionality is easily added. The config below, again creates a “species” select list but now adds a filter box, an Unknown-option and the ability to add custom-values:

form:
  - select:
      label: species
      column: common_name
      required: true
      items:
        path: data/species_counts.N-dse.csv
        value: common_name
        filter_box: true
        custom_value: true
        not_available:
          label: Unknown Species
          value: unknown

The following configuration below adds a custom title and a progress-tracker, passes the source id to the output dataset with name detection_id, and asks the user if the model has correctly identified the species.

simple-examples-3.yaml
title:
  value: REVIEW DETECTION
  progress_tracker: true
pass_value:
  source_column: id
  column: detection_id
form:
- select:
    label: Is [[common_name]] Valid?
    column: is_valid
    required: true
    items:
    - label: 'yes'
      value: 'yes'
      form: confirmed_form
    - label: 'no'
      value: 'no'
      form: rejected_form
dynamic_forms:
  confirmed_form:
  - select:
      label: confidence
      column: reviewer_confidence
      items:
      - low
      - medium
      - high
  - textbox:
      label: notes
      column: notes
  rejected_form:
  - select:
      label: corrected species
      column: corrected_common_name
      required: true
      items:
        path: data/species_counts.N-dse.csv
        value: common_name
        filter_box: true
        custom_value: true
        not_available:
          label: Unknown Species
          value: unknown
  - select:
      label: rejection reason
      column: rejection_reason
      required: true
      items:
      - noise
      - wrong species
      - overlapping signals
      - too faint
      - other
  - number:
      label: signal quality (1-5)
      column: signal_quality
      min: 1
      max: 5
      step: 1
  - checkbox:
      label: flag for expert review
      column: flagged
  - textbox:
      label: notes
      column: notes
      multiline: true
submission_buttons:
  line: true
  next:
    label: Skip
  submit:
    label: Verify

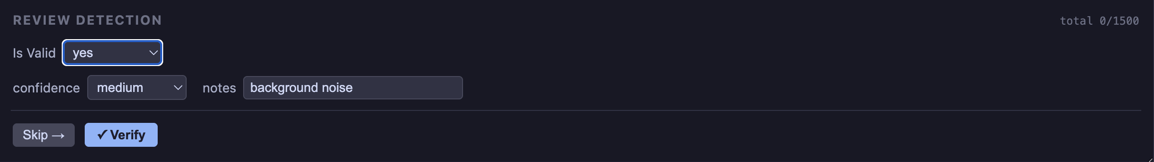

If the response is yes the confirmed_form allows for the user to add additional detials.

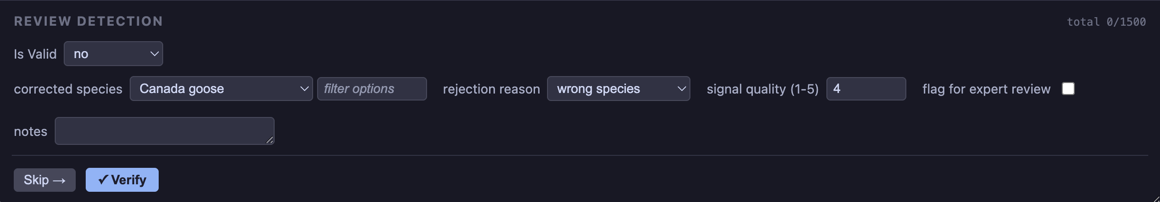

If the response is no the rejected_form allows the user to select the correct species, ask for a review, etc.

Additional examples are given in the Customizable Forms section.
