Customizable Forms

Authors
Affiliations
The Eric and Wendy Schmidt Center for Data Science & Environment
University of California, Berkeley
The Eric and Wendy Schmidt Center for Data Science & Environment
University of California, Berkeley
The Eric and Wendy Schmidt Center for Data Science & Environment
University of California, Berkeley

Forms are easily configured through YAML. Here is a simple form that adds a species dropdown, where the species names are pulled from a column in a CSV file.

form:
    - select:
          label: 'species'
          column: 'common_name'
          required: true
          items:
              path: 'data/categories-small.csv'
              value: 'common_name'

Form Structure

Forms are assembled from a small set of composable elements, all configured through YAML. Input elements are placed inside a form: list, while structural elements remain at the top level.

Display — static elements that show information but do not collect input

User Input — interactive elements inside the form: list

Layout — containers that arrange other elements (they nest)

Data — elements that write values to the output without user interaction

Navigation — form submission and navigation controls


Examples

Quick Review with Buttons

One-click review: ✓ / ✗ / ? radio buttons in a row with keyboard hot keys, a toggle, and a flag button that submits. Pressed buttons get a white ring; the rest of their group fades.

title:
    value: REVIEW DETECTION
    progress_tracker: true
form:
    - row:
          column: is_valid
          items:
              - text: 'Is this a [[common_name]]?'
              - button: {value: 'yes',  icon: 'jba:check',  hot_key: y, required: true}
              - button: {value: 'no',   icon: 'jba:x',      hot_key: n}
              - button: {value: unsure, icon: 'jba:unsure', hot_key: u}
    - row:
          - text: 'present:'
          - button:
                column: present
                initial_value: 0
                toggle:
                    - {value: 1, icon: 'jba:checked'}
                    - {value: 0, icon: 'jba:unchecked'}
          - button: {column: flagged, value: true, icon: 'jba:flag', hot_key: q, submit: true}

Built-in icons: jba:check, jba:x, jba:unsure, jba:na, jba:flag, jba:star, jba:checked, jba:unchecked, jba:plus, jba:minus; color / background and pressed_icon / pressed_color / pressed_background restyle them. See Buttons.

Layout and Button Groups

row, column and grid arrange any elements. On a container, column / unique / delimiter apply to the buttons inside: below, call types allow several (song;alarm), and “loudest other sound” is one-hot (exactly one column is 1).

form:
    - grid:
          columns: 2
          items:
              - select: {label: species, items: {path: data/species.csv, value: common_name}}
              - number: {label: count, min: 0, max: 50}
    - row:
          - text: 'call types:'
          - grid:
                columns: 3
                column: call_types
                unique: false
                delimiter: ';'
                items:
                    - button: {value: song, icon: song, width: 50}
                    - button: {value: call, icon: call, width: 50}
                    - button: {value: alarm, icon: alarm, width: 50}
    - row:
          - text: 'loudest other sound:'
          - row:
                unique: true
                items:
                    - button: {column: other_bird,  value: 1, initial_value: 0, icon: bird, width: 50}
                    - button: {column: other_noise, value: 1, initial_value: 0, icon: noise, width: 50}

See Layout: row, column, grid.

Side Form

side_form: true at the top of the form config puts a small form beside the spectrogram (the spectrogram takes side_form_split of the width, default 2/3; drag the divider to change it). Collapsed, the form (or the spectrogram) becomes a narrow strip with its title (or the playback time) running vertically; narrow widgets put the form back below. submission_buttons: false drops the Submit row when buttons submit.

side_form: true
side_form_split: 0.66
title: QUICK REVIEW
form:
    - row:
          column: is_valid
          items:
              - button: {value: 'yes', icon: 'jba:check'}
              - button: {value: 'no',  icon: 'jba:x'}

See Side Form.

Keyboard

k / j move to the next / previous clip, Shift+Tab cycles through the sections, and Tab / ← / → move through the form (Enter steps into a row, Esc steps out). A button’s hot_key and a select’s hot_keys work while that item has focus; pin_hot_keys: true lists a select’s hot-keyed items first. See Keyboard Shortcuts and Hot Keys.

Species Labeling with Notes

A select dropdown sourced from a CSV file, a required checkbox, and a free-text notes field.

form:
    - select:
          label: species
          column: common_name
          required: true
          items:
              path: data/categories-small.csv
              value: common_name
              filter_box: true
    - checkbox:
          label: high quality
          column: high_quality
    - textbox:
          label: notes
          column: notes

Confidence Rating

A simple review form with an inline dropdown and a numeric confidence score.

title:
    value: RATE CLIP
    progress_tracker: true
form:
    - select:
          label: quality
          column: quality
          required: true
          items: [good, fair, poor]
    - number:
          label: confidence
          column: confidence
          min: 0
          max: 1
          step: 0.1

Time Annotation

Collect start and end times by drawing directly on the spectrogram, pre-filled from the source data.

annotation:
    start_time:
        label: start
        column: start_time
        source_value: start_time
    end_time:
        label: end
        column: end_time
        source_value: end_time
    tools: start_end_time_select
form:
    - select:
          label: species
          column: common_name
          required: true
          items:
              path: data/categories-small.csv
              value: common_name
submission_buttons:
    next:
        label: Skip
    submit:
        label: Submit

Dynamic Forms

Dynamic forms show different fields depending on the answers to previous responses. Consider the following config:

form:
    - select:
          label: Is Valid
          column: is_valid
          required: true
          items:
              - label: 'yes'
                value: 'yes'
                form: confirmed_form
              - label: 'no'
                value: 'no'
                form: rejected_form
dynamic_forms:
    - confirmed_form:
          - select:
                label: confidence
                column: reviewer_confidence
                items: [low, medium, high]
          - textbox:
                label: notes
                column: notes
    - rejected_form:
          - select:
                label: corrected species
                column: corrected_common_name
                required: true
                items:
                    path: data/categories-small.csv
                    value: common_name
                    filter_box: true
                    custom_value: true
                    not_available:
                        label: Unknown Species
                        value: unknown
          - select:
                label: rejection reason
                column: rejection_reason
                required: true
                items:
                    - noise
                    - wrong species
                    - overlapping signals
                    - too faint
                    - other

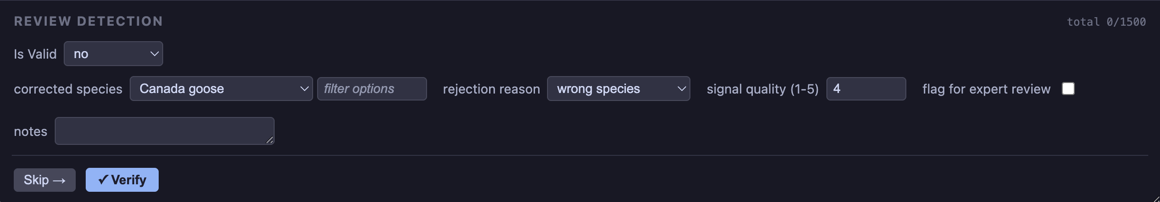

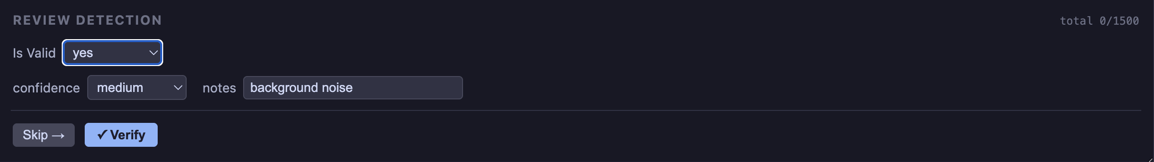

A validity dropdown that shows a correction form when “no” is selected and asks for confidence and notes when “yes” is selected. Checkboxes can also trigger dynamic forms using checked_form and unchecked_form:

form:
    - checkbox:
          label: flag for expert review
          column: flagged
          checked_form: review_reason_form
dynamic_forms:
    - review_reason_form:
          - textbox:
                label: reason
                column: review_reason
